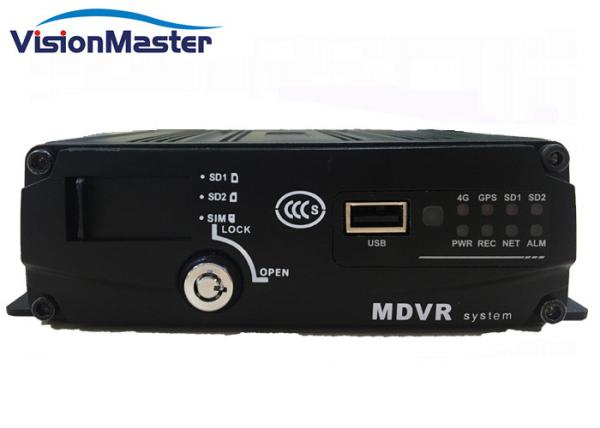

1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional

Name: 1920 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional
Brand: VisionMaster
Price: 1 USD

Quality 1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional wholesale

Brand Name : VisionMaster

Model Number : VM-6004

Certification : CE, FCC, RoHS

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 Set/Sets

Price : Negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 2000 sets / month

Delivery Time : 3-5 work days for samples,15-30 work days for large orders

Packaging Details : Neutral packing

Compression : H.265

Warranty : 1Years

Power : DC8V - +36V

Function : 3G 4G WIFI GPS Optional

Wifi : WIFI Optional

Language : Chinese/English

Video output : VGA & A/V

Video input : 4 Channels,1920*1080P

Contact Now

4 Channels 1920 * 1080P 4G Mobile DVR With GPS 3G WIFI Car Black Box

Brand	Multifunctional Dual SD Mobile DVR
Model	VM-6004-1080P
AI Functions	Support Driver Face ID &Comparison ,DMS(Option)	Interface	USB*2(USB Tools & Fireproof black box)
Video	4CH AHD1080P/720P 1CH IPC Video Input(Option) CVBS1 output,HDMI1 output		Support 100M/1000M Net Port IPC 1080P Input
			IO_IN4, IO_OUT1,RS4851,RS2322
			12V Output,Max: 1A
Video Compression	Compatible H.265/H.264 Video Compression	Voltage	DC8V—36V Input
Audio	5 Input,2ch Output,G.711A Audio Compression	Power	< 6W (No Peripheral)
Wireless Communication	4G:TD-LTE/FDD-LTE 3G:EVDO/WCDMA/TD-SCDMA WIFI/BT (optional)	Operation Environment	-25℃—＋75℃
Storage	2*SD(512GB Max) , External USB interface for data backup	Humidity	10％—95％
Satellite Position	Beidou/GPS/GLONASS(Option)	Protection Level	IP43
Control Mode	IR Remote Control,Tools APP,Platform	Dimension	140 x 160x 48mm(L x W x H)

Product Description

The VM-6004-1080P series is a cost-effective and multifunctional device with good expansible functions, which integrates vehicle video surveillance and DMS (facial recognition and driving behavior analysis system).

The terminal adopts the Hi3520D V400 scheme with built-in ARM A7 dual-core processor and a main frequency up to 1.3Ghz.

Combined with the Linux operating system, it perfectly supports 4-channel AHD 1080P resolution, and realizes the perfect implantation of facial recognition and driving behavior analysis algorithm.

Combined with the most advanced image processing tech-H.265 video compression/decompression tech(compatible with h. 264), the network/positioning/RFID/technology which can realize video recording, driver identify recognition, driver behavior analysis/fatigue detect, car information records, and coupled with big data platform which can realize real-time monitoring, abnormal driving behavior alarm, management of motor vehicles remotely and driving state data analysis.

In addition, the product has a rich expansion interfaces, can be connected to 4 alarm input sensor, reserved 232/485 interface, dual USB interface design, CVBS/HDMI two video output, support 100M/1000M network port, support IPC 1080P input.

VM-6004-1080P series products are characterized by simple and tidy appearance, super vibration resistance, flexible installation, powerful function and high reliability.

1920 * 1080P 4G Mobile DVR 4 Channels GPS 3G Car Black Box WIFI Optional

Note:

1.For the H.265 video compression device, its code stream can be half of H.264 compression device.

2.Calculation formula:File size ( Gbps ) =code stream ( Kbps ÷8×3600×recording time(hour)÷1024÷1024.

Take D1 resolution as example, under H.264 video compression, 1 hour recording file: 3600*2048Kbps/8/1024=900M

Take D1 resolution as example, under H.265 video compression, 1 hour recording file: 3600*1024Kbps/8/1024=450M
